LCD screen security cameras wireless NVR wifi kit, 4CH 8CH CCTV IP camara kit

FOB Reference Price:Get Latest Price
$139.00 - $155.00 / Units | 1 Unit/Units (Min. Order)
Type:
Ip Camera NVR
Style:
BULLET CAMERA Dome Camera
Channels:
4 8
Lead Time:
Quantity(Units) 1 - 1 2 - 100 101 - 1000 >1000
Est. Time(days) 2 15 40 Negotiable
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 1000 Units)

More

Graphic customization (Min. Order: 1000 Units) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
XONZ
Model Number:
XZ-KN7108WL-I9
Product name:
LCD screen kit
Resolution ratio:
720P/960P/1080P can be opetion
Function:
Display&store all - in one
operation system:
embed linux operation system
Feature1:
4CH 8CH LCD screen all in one
Lens:
4MM
Warranty:
1 Years
Feature:
HD IP scrise, outdoor, indoor, bullet , dome opetion
Keyword:
LCD LED screen control board diy monitor kit
Feature2:
Anytime anywhere preview, plug&play
Supply Ability
Supply Ability:
10000 Unit/Units per Month Nvr kit 4 channel without hard disk
Packaging & Delivery
Packaging Details
Inner with color box, outer with carton
Port
Shenzhen/ Hongkong
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 1 2 - 100 101 - 1000 >1000
Est. Time(days) 2 15 40 To be negotiated

 LCD screen security  cameras wireless NVR wifi kit, 4CH 8CH CCTV IP camara kit







1.NVR/Display Unit, Mini Wifi Kits, LCD NVR  all in one PC , Plag & Play



2. 8.9-inch Samsung LCD display with 1024*600 resolution.



3• Provide HDMI interface to support external HDMI synchronization.



4• Support 720P/960P/1080P Video access.



5• With 2 foldable WiFi antenna, distance can be 100 meters in open area.



6• Built-in high performance and high stability wireless WI-FI routing module,



7• Support a 2.5-inch SATA interface, easier drawer-type installation.



8• With cassette base, can stand on the desk.



9• Support remote video browsing and playback on PC and mobile APP.



10.The installation is very simple;



11.You can view  anytime anywhere via smart phone;



12.Using wifi function the cost for free ;



 13.They are suitable for the Family, Hotel, Office, Warehouse to installation



  Technical Specification:

model

 XZ-KN7104WL-I9

XZ-KN7108WL-I9

   Host

operation system

embed linux operation system

LCD

Samsung 8.9" LCD,Image Resolution  1024*600

network video input

4CH  720P/960P/1080P

8CH  720P/960P/1080P

HDMI

1CH  HDMI output  Image Resolution 1920*1080,1440*900,1366*768/1024*768

Image preview

 1/4

1/4/6/8/9

Video compression

H265/H.264

Audio(Optional)

 Built-in 1 high-fidelity speaker, support for voice monitoring,Audio compression G.711

(Need to cooperate with the camera)

Playback capability

1CH 1080P/960P/720P

recording/capture mode

manual recording,time recording ,motion detection recording,alarm recording

playback mode

instant playback,general playback,event playback

Network port

one RJ45 10M/100M self adaptive ethernet port 2  antenna

Network protocol

HTTP/DHCP/UPNP/SMTP/FTP/ONVIF/P2P

HDD

1CH  2.5" SATA port, Drawer-type installation,MAX:6T

USB

1CH  USB2.0

size

230mm*147mm*42mm

Others

DC12V2A,  6W(without HDD),-10~55°,10%~90%

  Camera

Mega Pixel

1.0MP

1.3MP

2.0MP

Structure

HI3518E+SC1145

HI3518E+SC1135

HI3516EV100+SC2235

Max.Image Resolution

1280*720

1280*960

1920*1080

video compression

H265/H.264

Min illumination

Color:0.1Lux;  Black-white:0.01Lux

Audio

Optional audio input

Len

2mp 3.6mm(Optional 6mm)

IR LED

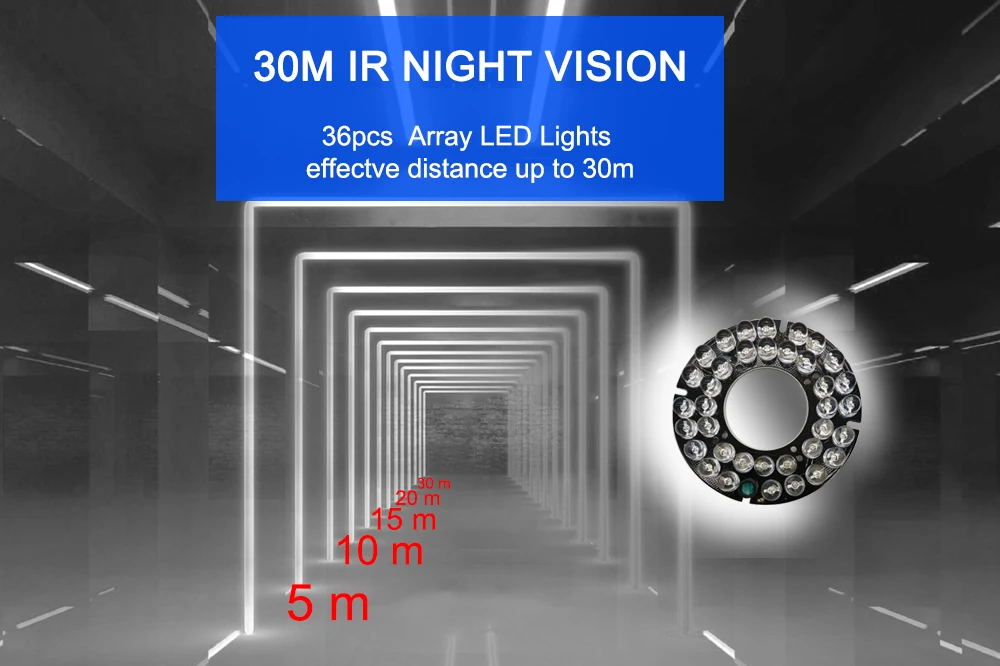

36 θ5 14μIRLED,IR Distance 25M

Network port

one RJ45 10M/100M self adaptive ethernet port 1 antenna

Installation method

Metal material, self-supporting bracket, wall mountable or hoisted

size

166*63*63mm

Others

Power DC12V1A,  5W, -10~50°,30%~80%

  package

Set contains

4CH KIT:1*Host,4*HD IPC,5*DC12V Power,1*1M Cable,1*mouse,Manual ,certificate

8CH KIT:1*Host,4*HD IPC,9*DC12VPower,1*1M Cable,1*mouse,Manual ,certificate

Packing

4CH:320mm*280mm*180mm

8CH:320mm*280mm*280mm

Company Information

Shenzhen Xonz Technology Co.,Ltd. located in Shenzhen China,is a High-tech Enterprise which is engaged in designing,manufacturing and selling all kinds of HD IP cameras,NVRs and Car series that owe 3000 square meters manufacturing area.We have experienced R&D team and advance R&D test equipment,and develop some project with a number of University Institute in China.

Product involved in 1.0 / 1.3 / 2.0 / 3.0 /4.0/ 5.0 /8.0 megapixel IP camera,360 degree panoramic ;  WIFI IP camera,   PTZ series IP camera,  high speed dome IP camera, smart home security cameras;   4CH / 8CH / 9CH / 16CH / 32CH /64CH/128CHNVRs,  can offer OEM / ODM service. Xonz products have been passed FCC,CCC , FCC , RoHS  certification,the product sells all around Europe,Northern America, Southeast Asia and Latin America.
