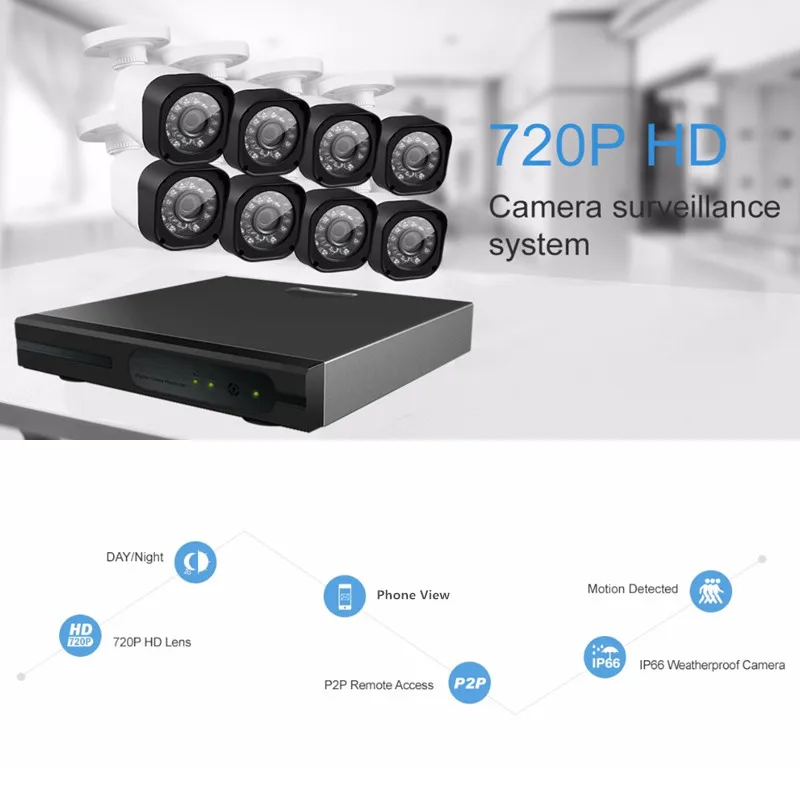

720p ahd cctv camera wired kit home and comercial video water proof 8 channel dvr system

FOB Reference Price:Get Latest Price
  • 1 - 49 Units
    $135.00
  • >=50 Units
    $125.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
XONZ
Model Number:
XZ-KH5108-VE/24E4
Sensor:
Color CMOS
Resolution:
1080P
Lens:
3.6mm
Waterproof:
IP66
IR Leds:
24pcs IR
IR daistance:
30M
TV system:
PAL/NTSC
Playback:
4CH 720P 1CH 1080P
SATA:
1 SATA Max 6TB
Keyword:
Outdoor HD DVR Security Camera System
Supply Ability
Supply Ability:
100000 Unit/Units per Month ahd dvr security system support oem odm service
Packaging & Delivery
Packaging Details
Xonz brand package or Neutral Packing
OEM/ODM available
Port
Shenzhen any port
Lead Time :
After received payment 5-10 days

720p ahd cctv camera wired kit home and comercial video water proof 8 channel dvr system

Product Description

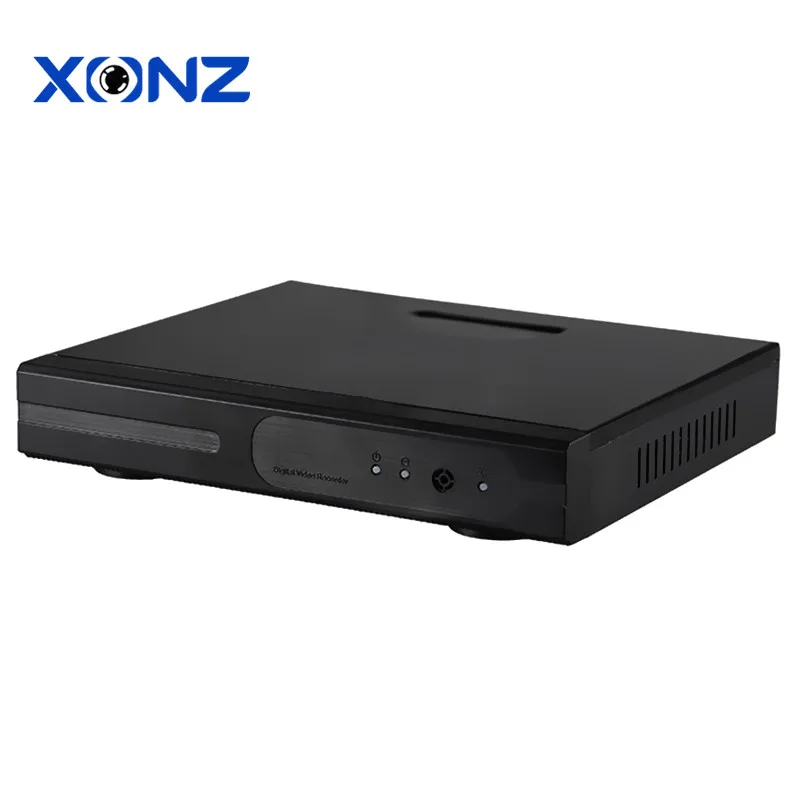

NVR specification



Channel Mode

DVR Mode

Support, Max 8ch AHD/ TVI /CVI@1080P/960P/720P;analog video real time input

Mixed Mode

Support, Max 8ch,

NVR Mode

Support, Max 8ch IPCAM video real time input

Digital Channel
(IPC)

IP video input

Max 8ch 1080P,RJ45 interface

buit-in switch

NO

Protocol

ONVIF,N1

IPC Remote Setting

Time synchronization setting/ encoding setting
color adjust/ Motion detection

Analog Channel

video input format

TVI 2.0 AHD CVI(720P@25/30/50/60fps,1080P@25/30fps),CVBS(960H@PAL/NTSC)

video encoding resolution

1080P-H(960x1080)/720P@16fps;
960H/D1@25fps

video encoding rate

512 Kbps ~ 4Mbps

UTC

support 8ch

Audio input

support 4ch(8 CH optional)

Audio  encoding

G.711

Video output

HDMI output

1 CH ,HDMI  Interface;Max Resolution:1920x1080/60Hz

CVBS output

Can support custom

VGA  output

1 CH ,VGA  Interface;Max Resolution:1920x1080/60Hz

Audio output

Audio output

RCA Audio output *1, HDMI Audio output

Playback

Stream type

AV stream/video stream

Video Compression

H.264

audio Compression

G.711

Recording

DVR mode:8 CH 720P/Half-1080P Recording
Mixed mode or NVR mode:8 CH 1080P Recording

Playback

DVR mode:4 CH 720P/Half-1080P Playback
Mixed mode or NVR mode:4 CH 720P/Half-1080P Playback, or 1ch 1080p playback

Double stream



Support

Web access



Support

PC client



Support

Mobile phone client



Support

Hard disk drive

Storage Type

1 *  SATA  Interface(2*SATA optional)

Storage Capacity

6TB/sata In Max

Backup

USB Backup & Internet Backup

External interface

Network Interface

RJ45 10M / 100M Internet Interface

USB Interface

2 * USB2.0 Interface(Support Upgrade,Backup,Mouse)

Alarm interface

Optional: 4 in 1 out

Serial Interface

1 * RS485 Interface

Other

Temperature

—10℃---- 55℃

Operation System

Embedded Linux

Soft Power-Off

Support

Device Control

Remote Control & Mouse

Power Input

DC +12 V / 2A(4A@2*SATA)





Camera Specification



Specifications

Sensor

2.0MP 1/4 Color CMOS V20E+OV9732

TV System

PAL/NTSC

Effective Pixes

1280(H)×720(V)

Min Illumination

0.1Lux@(F1.2,AGC ON),0LUX with IR

Shutter

AUTO

Day/Night

External control (default) / auto / color / black and white

Synchronization

Internal

Frame rate

720P@25fps / 720P@30fps

Video Output

AHD/TVI/CVI/CVBS  (Optional)

Lens

3.6mm Fixed (6mm/8mm optional)

IR LEDs

24pcs IR LED

IR distance

20 Meters

OSD

exposure

Brightness / exposure mode / gain

AWB

Auto white balance/Manual white balance

D & N

Infrared / internal auto / color / black and white

Video Setting

Contrast / Sharpness / Saturation / Digital Noise Reduction / Video Format / Digital Wide Dynamic

Language

Multi-Language

Working

Working temperature

-20℃  to  60℃

Working humidity

Under 90 %

Power

DC12V(±20%)

Weight

0.5 KG


Pictures

Company Information

Shenzhen Xonz Technology Co.,Ltd. located in Shenzhen China,is a High-tech Enterprise which is engaged in designing,manufacturing and selling all kinds of HD IP cameras,NVRs and Car series that owe 3000 square meters manufacturing area.We have experienced R&D team and advance R&D test equipment,and develop some project with a number of University Institute in China.
Product involved in 1.0 / 1.3 / 2.0 / 3.0 / 5.0 megapixel IP camera,license plate camera,wireless WIFI IP camera, PTZ IP camera,high speed dome IP camera,4CH / 8CH / 9CH / 16CH / 32CH NVR,CAR DVD,CAR CD,CAR GPS,CAR MP3/4/5,etc.,can offer OEM / ODM service. Xonz products have been passed FCC,CCC certification,the product sells all around Europe,Northern America, Southeast Asia and Latin America.
