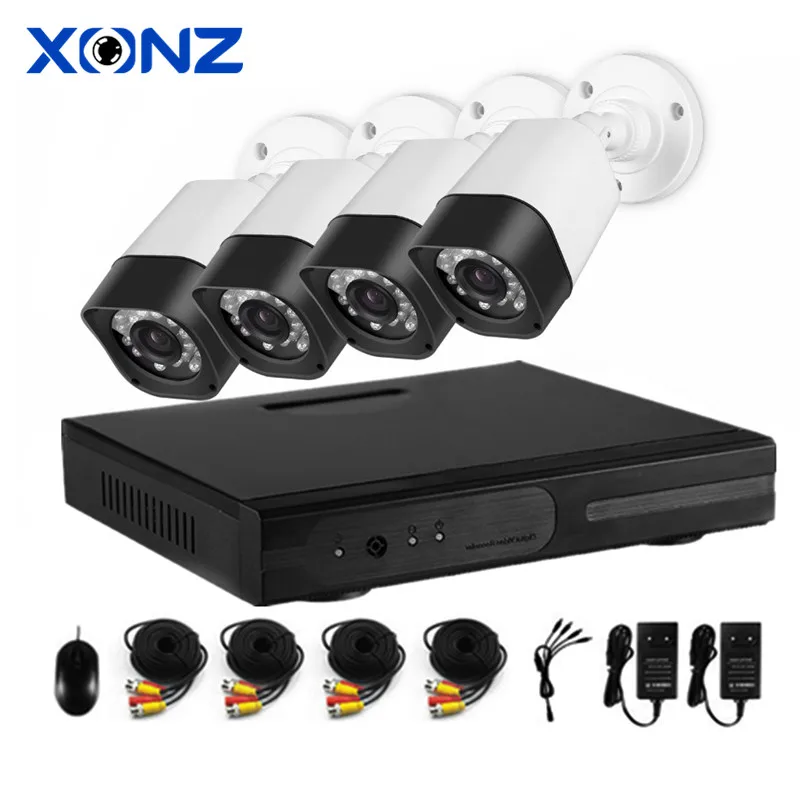

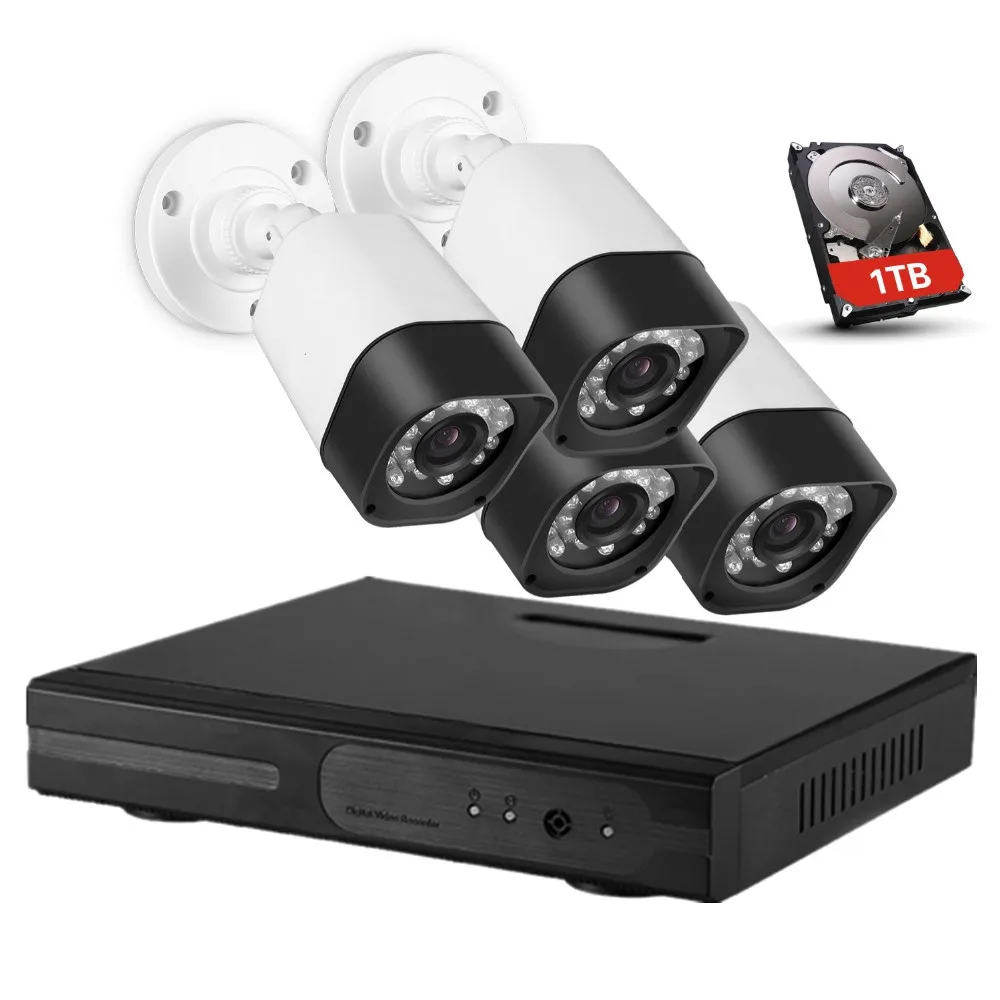

1080P 2mp Home Security 4ch Cctv Camera Kit System Outdoor AHD Camera Kit With DVR

FOB Reference Price:Get Latest Price
$58.80 - $71.20 / Sets | 1 Set/Sets (Min. Order)
Type:
Ip Camera NVR
Style:
BULLET CAMERA Dome Camera
Channels:
4 8 16 32 64
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
XONZ or OEM
Model Number:
XZ-KH5104-VE/24E4
Product name:
cctv camera dvr kit
Keyword:
cctv camera kit system
Resolution:
720P/960P/1080P

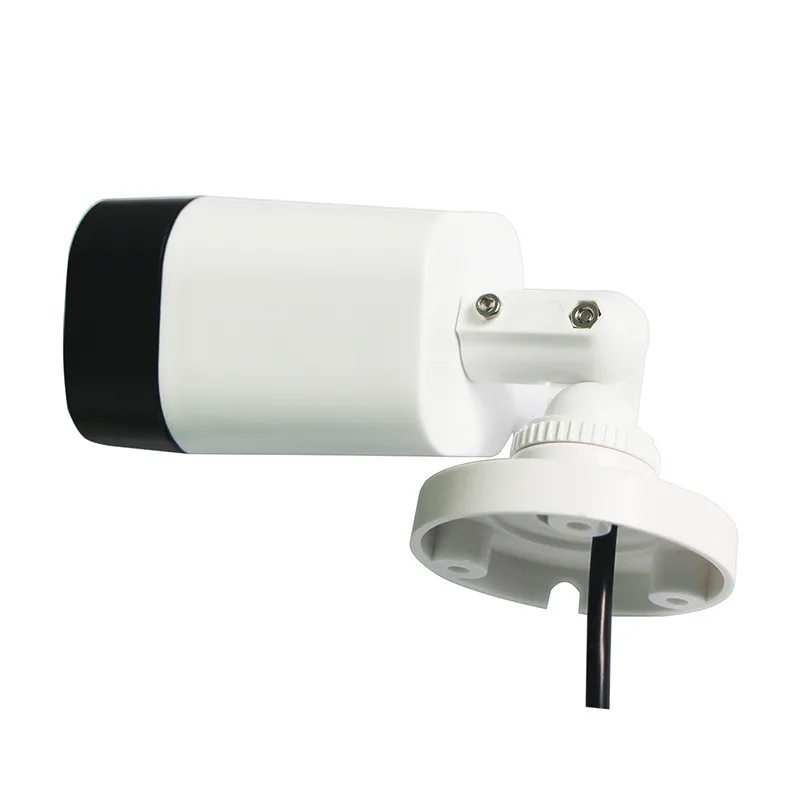

Camera:
IR Bullet camera
Lens:
3.6mm Fixed Lens
Camera type:
4pcs waterproof bullet outdoor cameras
IR daistance:
20m
Power supply:
DC12V1.5A
Certificate:
CE FCC ROHS
Feature:
home security camera kit
Supply Ability
Supply Ability:
100000 Set/Sets per Month Factory Production of Dome HD Camera 4ch cctv dvr kit security s
Packaging & Delivery
Packaging Details
Xonz brand package or Neutral Packing
OEM/ODM available
Port
Hongkong Or Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 2 To be negotiated
Video Description

1080P 2mp Home Security 4ch Cctv Camera Kit System Outdoor AHD Camera Kit With DVR

Our Advantage



Product Description

 Camera Specification

2MP progressive scan CMOS

Spport Coaxial HD output, image more clear, delicate

Illumination: 0.01Lux@(F1.2,AGC ON),0L-CUT,CDS external control,Day & Night

Support OSD Menu, setting parameter by your wish (optional)pport D-WDR, adaptive 2D-DNR.

Support UTC, control camera menu by DVR.



Model

XZ-24E4-VE

Specifications

Sensor

1/4"OV9732 + V20E

TV System

PAL/NTSC

Effective Pixes

1280(H)× 720(V)

Min Illumination

0.01Lux@(F1.2,AGC ON),0LUX with IR

Shutter

AUTO

Day/Night

External control (default) / auto / color / black and white

Synchronization

Internal

Frame rate

720P@25fps / 720P@30fps

Video Output

AHD

Lens

3.6mm Fixed (6mm/8mm optional)

IR LEDs

24pcs IR LED

IR distance

15-20 Meters

                                                                       OSD

exposure

Brightness / exposure mode / gain

AWB

Auto white balance/Manual white balance

D & N

Infrared / internal auto / color / black and white

Video Setting

Contrast / Sharpness / Saturation / Digital Noise Reduction / Video Format / Digital Wide Dynamic

Language

Multi-Language

                                                                                        Working

Working temperature

-20℃  to  60

Working humidity

Under 90 %

Power

DC12V(±20%)

Gross Weight

0.4 KG



DVR specification:

Feature:

• Support TVI,AHD,CVI,CVBS,IPCAM 5in1

• Coaxial Support,MAX. 4CH AHD@1080P/720P;

  TVI@1080P/720P;CVI@1080P/720P;Standard analog video real-time input

• Network support Max. 4CH 1080p IPC input ;

• Support HDMI and VGA output;

• Support Onvif;

• Support web view, PC and Phone device.

• Support query, playback, backup video files

• Support 1 SATA 6TB storage

• CMS provide

Model

XZ-H5104A

Operating system

LINUX

Image coding control

Image coding quality can be adjusted

Dual stream

Support

Video Standard

 H.264

Image playback quality

4CH 720Pplayback/4ch Half-1080Pplayback/1ch 1080P playback

Backup mode

USB and network

Operation method

Mouse

Local login

User name and password

Video save

Local hard drive

Audio/Video Input

DVRmode

Support Max.4CH AHD@1080P/720P; TVI@1080P/720P;CVI@1080P/720P

Mixed mode

Support max. Channel 4,analog channel and IPCAM channel can be switched

IPC video input

Max. 4CH 1080P

Analog video input format

TVI 2.0(720P@25/30/50/60fps,1080P@25/30fps),AHD(720P@25/30fps,

1080P@25/30fps), CVI(720P@25/30fps, 1080P@25/30fps),

CVBS(960H@PAL/NTSC)

Analog video coding resolution

1080P-H(960x1080)@16fps;720P@18fps;960H/D1@25fps

Analog video coding rate

512 Kbps -- 4Mbps

Video output

1×VGA port,1×HDMI port

Audio input

Support 4ch

Audio output

1×RCA audio output

Audio coding

G.711

HDD

HDD port

1×SATA

Max. capacity

Max. 6TB/SATA

External interface

network interface

1×RJ45 10M / 100M Ethernet port

serial interface

1CH RS485 port

USB interface

2×USB 2.0port

Power

DC12V 2A

Power Consumption

10W(Without HDD)

Working temperature

-10~+55

Working humidity

10%-90%

Dimension

DVR:258mm*210mm*42mm

Package:365mm*263mm*75mm

Weight(Without HDD)

Net weight:1.0Kg;gross weight:1.2Kg

Installation method

Desktop



Pictures
